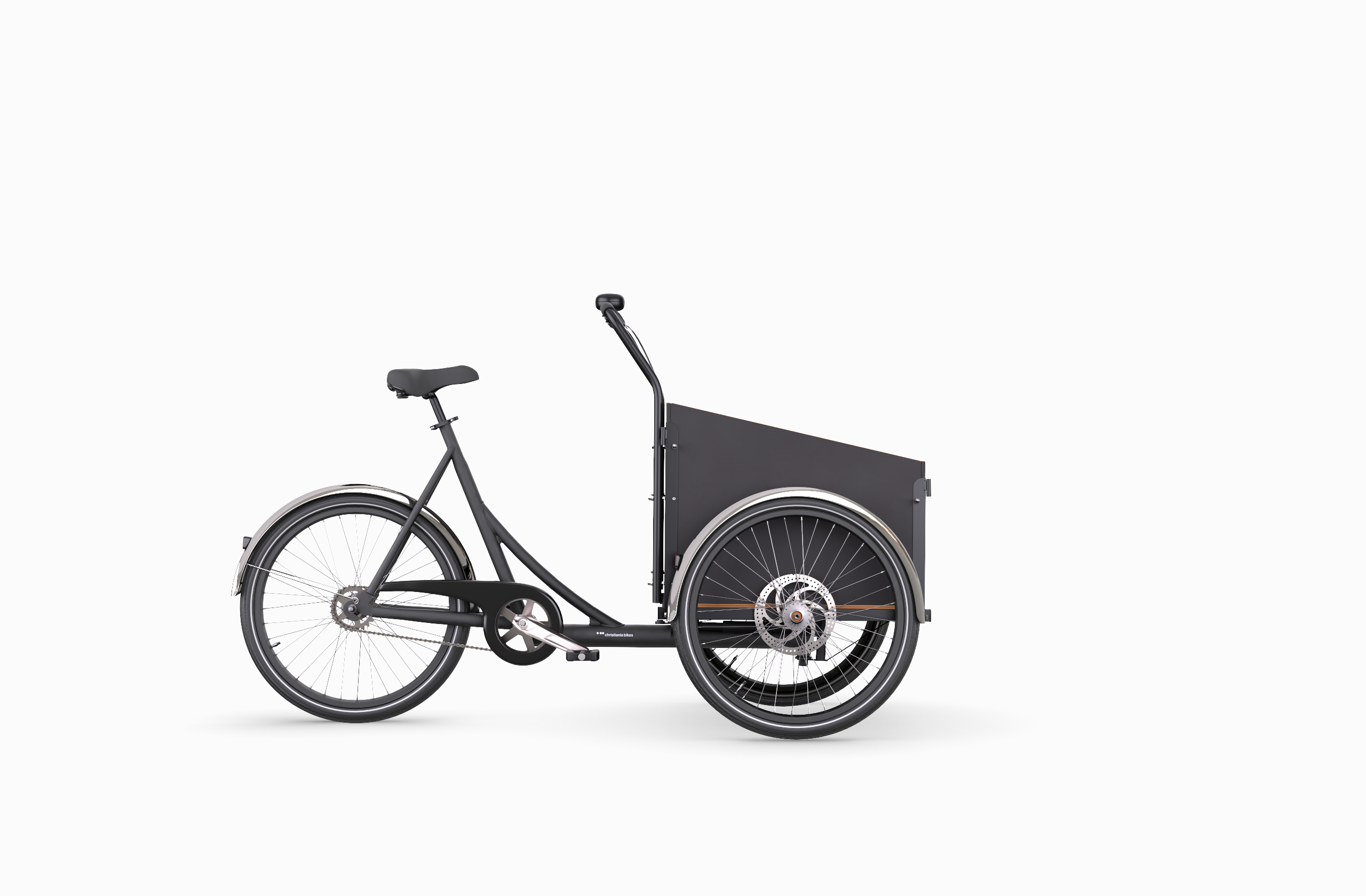

SHORT
Extra light and maneuverable.
The Short is particularly maneuverable compared to the other sizes because it is smaller. Yet it has a load capacity to carry up to two children and luggage. It can be produced with either a child bench or two folding seats in the gable.

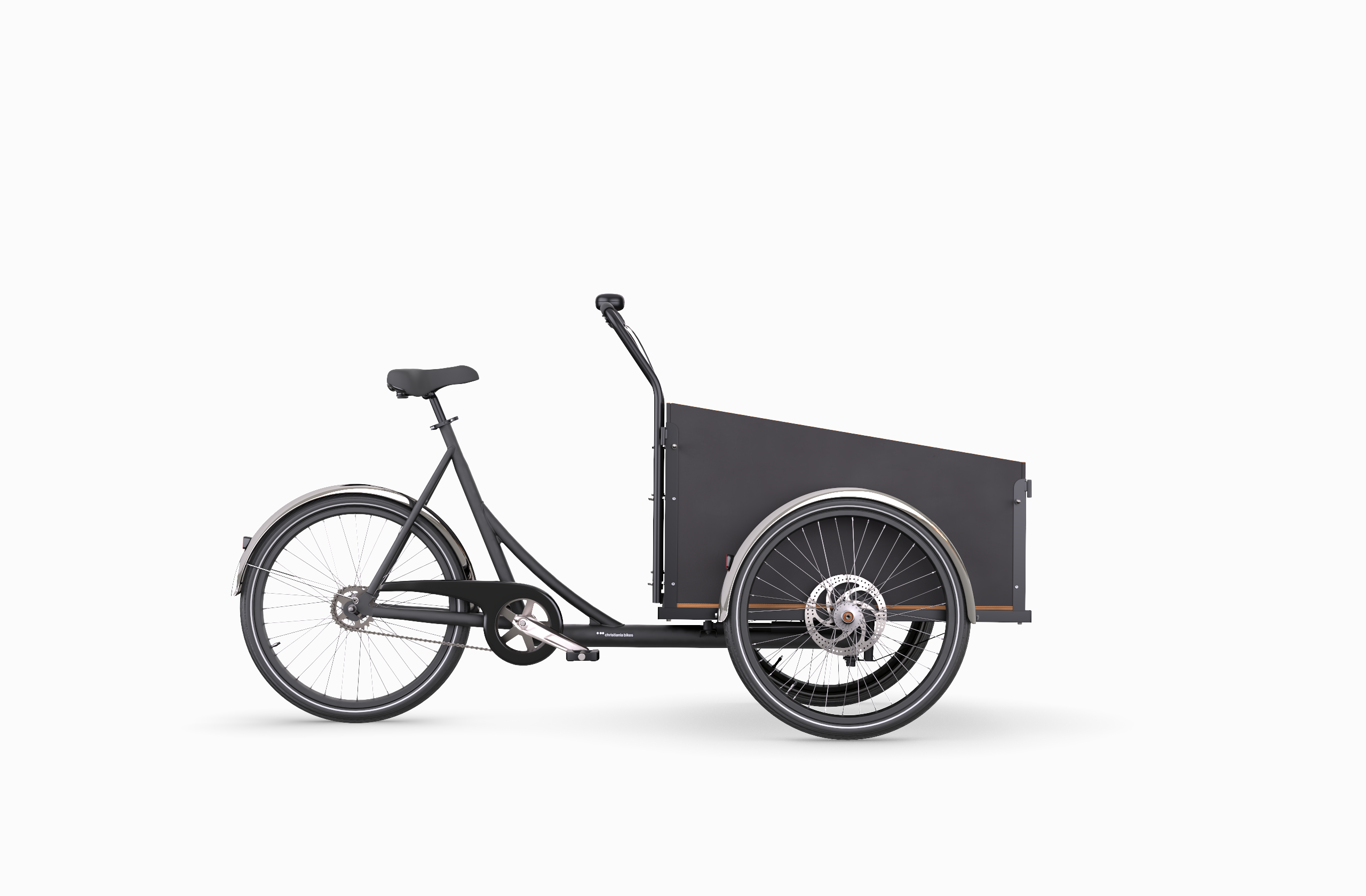

MEDIUM
The classic.
Versatile size, high turning radius and good load capacity make the Medium a popular choice. The design of the Medium is identical with the same dimensions as the first Christiania bikes, and it is therefore the classic size. It can be produced with either a children's bench or two folding seats and a lot of luggage.
Up to four children.

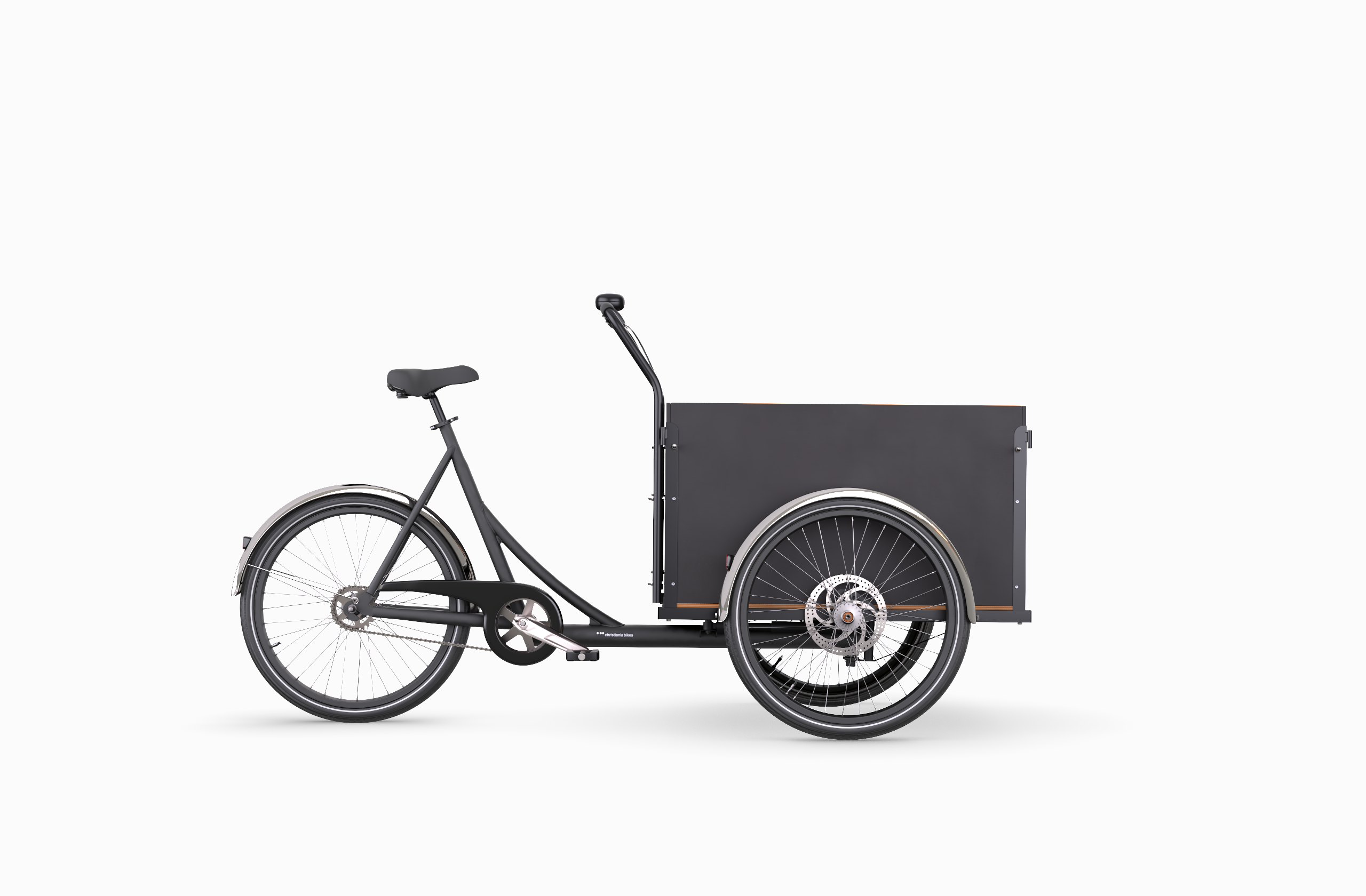

STRAigHT
Straight has the same versatility as Medium, but Straight has a straight box instead of a sloping box. This means that the Straight can accommodate up to four children. Straight can either be fitted with a child bench in the gable and front or folding seats along the sides. A popular choice is a children's bench in the gable and folding seats on the sides to make room for a door in the front so that children can get in and out of the box themselves.

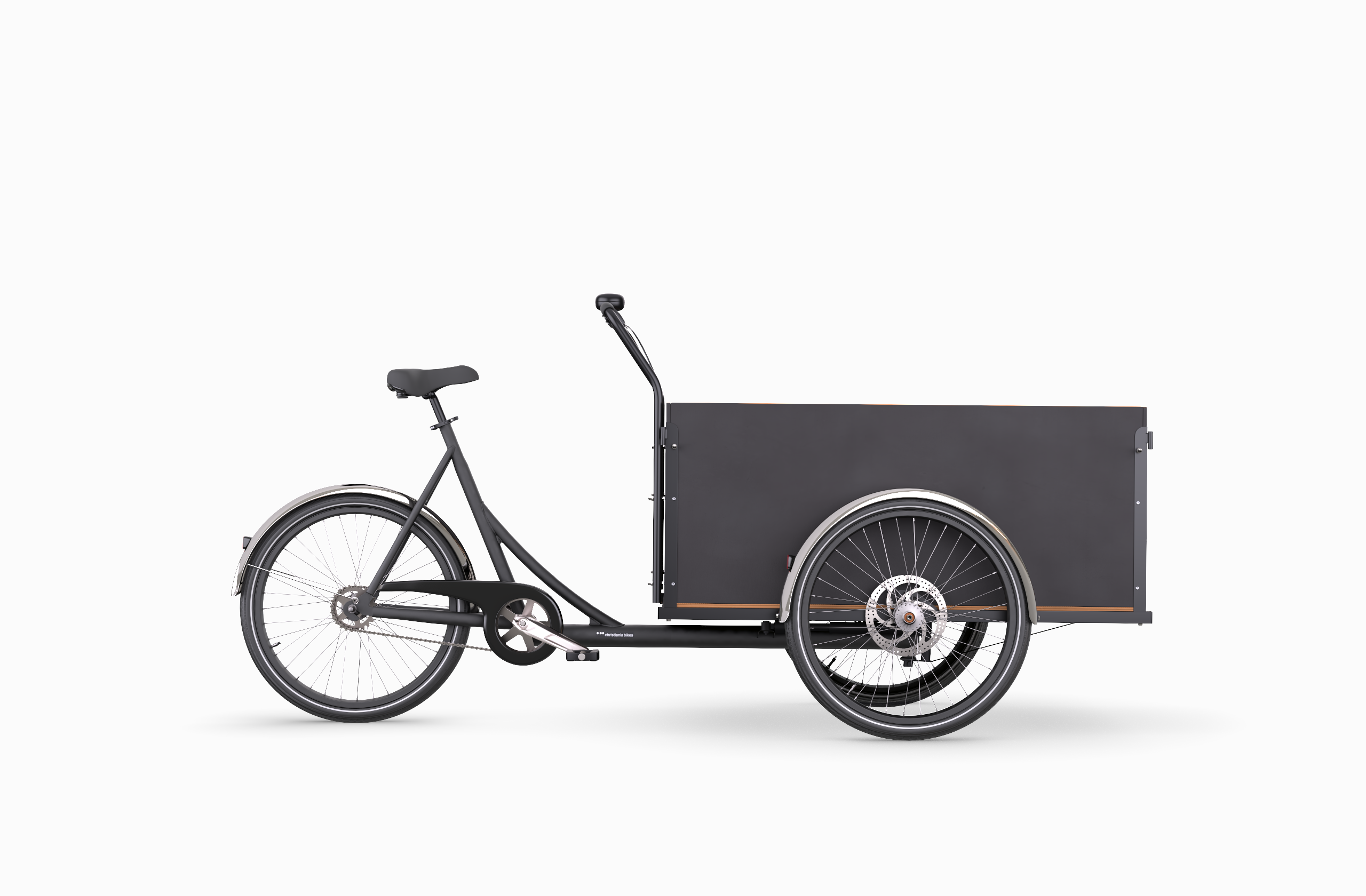

LONG
High load capacity.
With seating for up to six children, the Long is ideal for large families and institutions. On request, we can produce it with a children's bench in the gable and a children's bench in the front and/or folding seats along the sides. The most popular configuration is with a children's bench in the gable and up to four folding seats along the sides. In this way, it is also possible to add a door in the front so that children can enter and exit the box themselves.
Brushless rear-wheel motor.
- Nominal voltage: 36V
- Nominal power: 250W
- Max. power: 450W
- Max. torque: 54Nm
MOtor unit
The battery is integrated with a rear light and lock and mounts and locks into a luggage rack. Comes with a 3 year battery warranty and 70% capacity guarantee.
- Battery capacity: 630Wh
- Power: 17,4 Ah
- Voltage: 36V
- Weight: 4 kg
BATTERY
Made in Denmark.
Large LCD display.
- Easy-to-read large screen mounted in the center of the handlebar.
- Connected to a throttle with integrated buttons.
- Displays speed, battery capacity and assist level.
- 5 different assist and battery levels.
DISPlaY
Throttle
- The throttle gives full control of the motor.
- Walk assist up to 6km/h.
- On/off buttons for the motor system.
- On/off buttons for headlights and taillight.
- Adjust assist levels with buttons.
With integrated assistance level.
For both urban and mountain driving.
External gears for easy shifting regardless of terrain and load.
- SRAM X4 rear derailleur.
- SRAM X4 front derailleur.
- 11-32 tooth 8-speed cassette.
Gear
Powerful hydraulic rear brake.
- Black colored aluminum handle.
- Built-in parking function.
- Black colored brake caliper with 2 pistons.
- Rotor size of 203 mm.
- Organic brake pads.
Rear brake
Japanese produced center engine.
- Model: DU-EP600-CRG
- Rated voltage: 36V
- Rated power: 250W
- Max. power: 500W
- Max. torque: 85Nm
MOtor unit
The battery is mounted and locked to the seat tube with a keyed-alike lock that uses the same keys as the supplied ring lock.
- Model: BT-EN606
- Battery capacity: 630Wh
- Current: 17,5 Ah
- Voltage: 36V
- Weight: 3.2 kg
BATTERY
Downtube design with large capacity.
Discreet, simple and user-friendly.
- On/off buttons for motor and light.
- Assist buttons
- Displays speed, battery capacity, assist level, estimated number of km left.
- Walk assist up to 4km/h.
DISPlaY
midDrive I5 and midDrive X8
Gear
- midDrive X8:
8 external gears with SRAM X4 shifters.
- midDrive I5:
5 internal gears with Shimano 5-speed hubs.
Powerful hydraulic rear brake.
- Black colored aluminum handle.
- Built-in parking function.
- Black colored brake caliper with 2 pistons.
- Rotor size of 203 mm
- Rotor with ICE TECHNOLOGIES and CENTER LOCK
- Organic brake pads.
Rear brake
Front brakes
The type of front brake to be fitted to your Christiania bike varies according to your needs. We offer either mechanical or hydraulic disc brakes with 203mm rotor. Both the mechanical and the hydraulic disc brake have a direct and very powerful braking performance. Alternatively, it is also possible to mount mechanical roller brakes as a front brake. The roller brake requires minimal maintenance, will not tend to make noise and has a smoother braking action.
Lights
For all cargo bikes with an electric auxiliary motor, two integrated headlights are mounted under the box. Each headlight is StvZO, CE, RoHS certified, has a power of 1.2 watts, provides 40 Lux with a visibility of 150 meters.
Tires
We fit black CST tires with reflectors on all our cargo bikes. The tire is 24×2.15 (55-507) and can carry up to 145 kg. It has a TPI of 60 and is produced with the highest possible anti-puncture properties including double woven carcass, thin layer of aramid fiber and 3mm anti-puncture layer. The tire is designed for cargo bikes with anti-puncture level 7 and is ECE-R75 approved.
Specifications
| Short | Medium | Straight | Long | |
|---|---|---|---|---|
 |  |  |  | |
| Tare weight | 30 kg | 35 kg | 36 kg | 39 kg |
| Permissible total weight | 230 kg | 235 kg | 236 kg | 245 kg |
| Payload | 100 kg | 100 kg | 100 kg | 100 kg |
| turning radius | 503 cm | 480 cm | 480 cm | 534 cm |
| Width of bicycle | 87 cm | 87 cm | 87 cm | 87 cm |
| Length by bicycle | 187 cm | 208 cm | 208 cm | 238 cm |
| Height on a bicycle | 117 cm | 117 cm | 117 cm | 117 cm |
| Width of box | 62 cm | 62 cm | 62 cm | 62 cm |
| Length of box | 63 cm | 88 cm | 88 cm | 118 cm |
| Height of box | 50 / 36 cm | 50 / 36 cm | 50 cm | 50 cm |
| volume | 168 liters | 235 liters | 273 liters | 366 liters |
